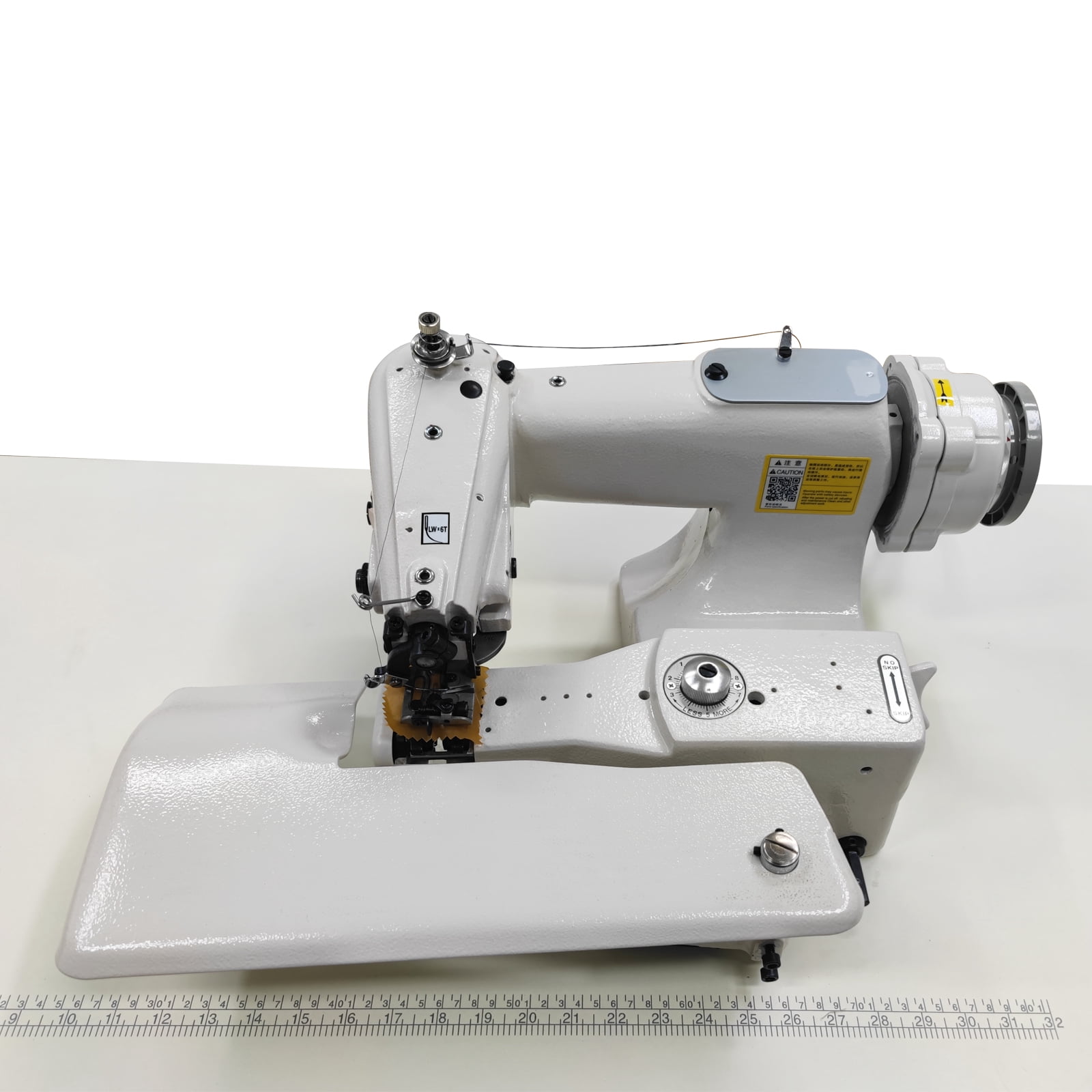

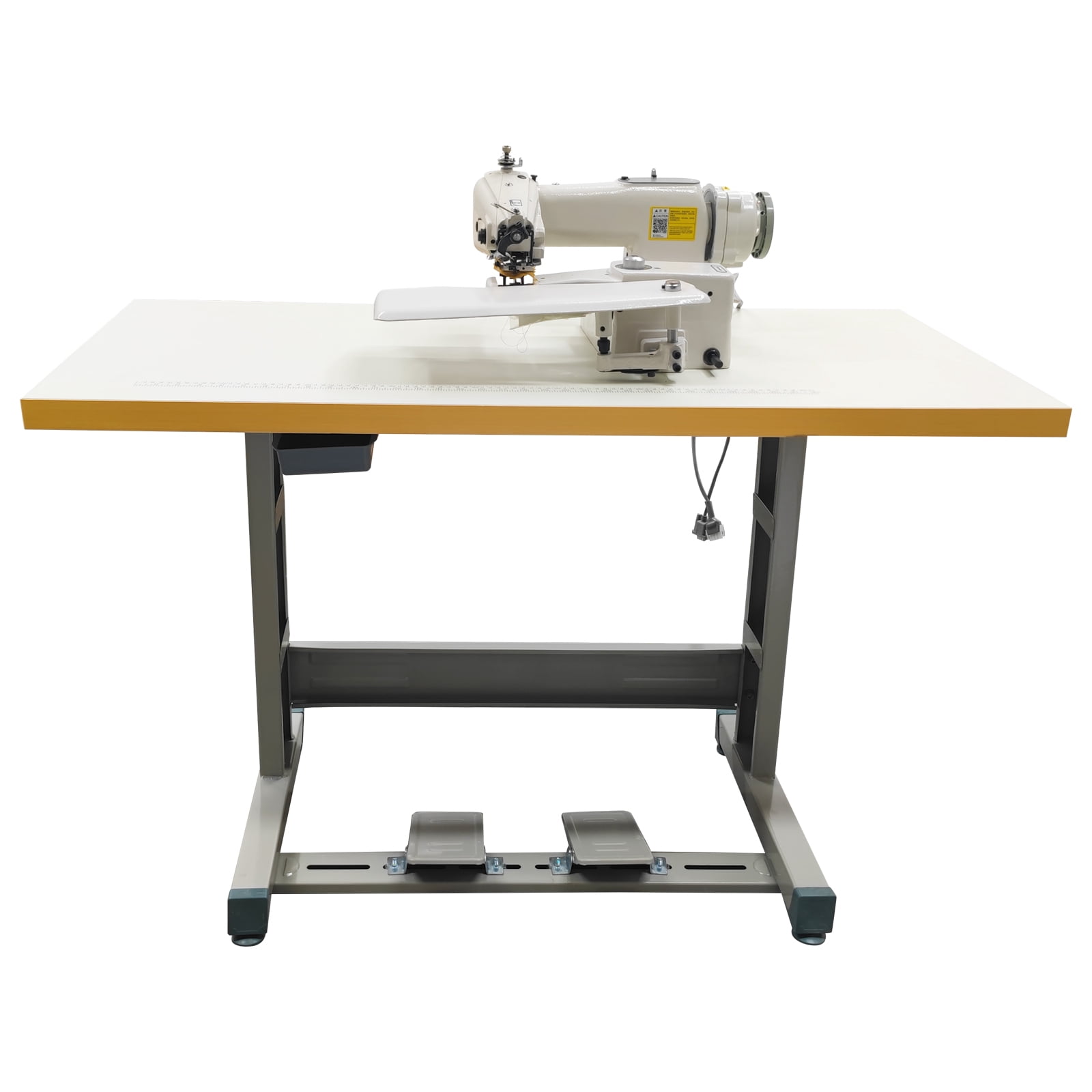

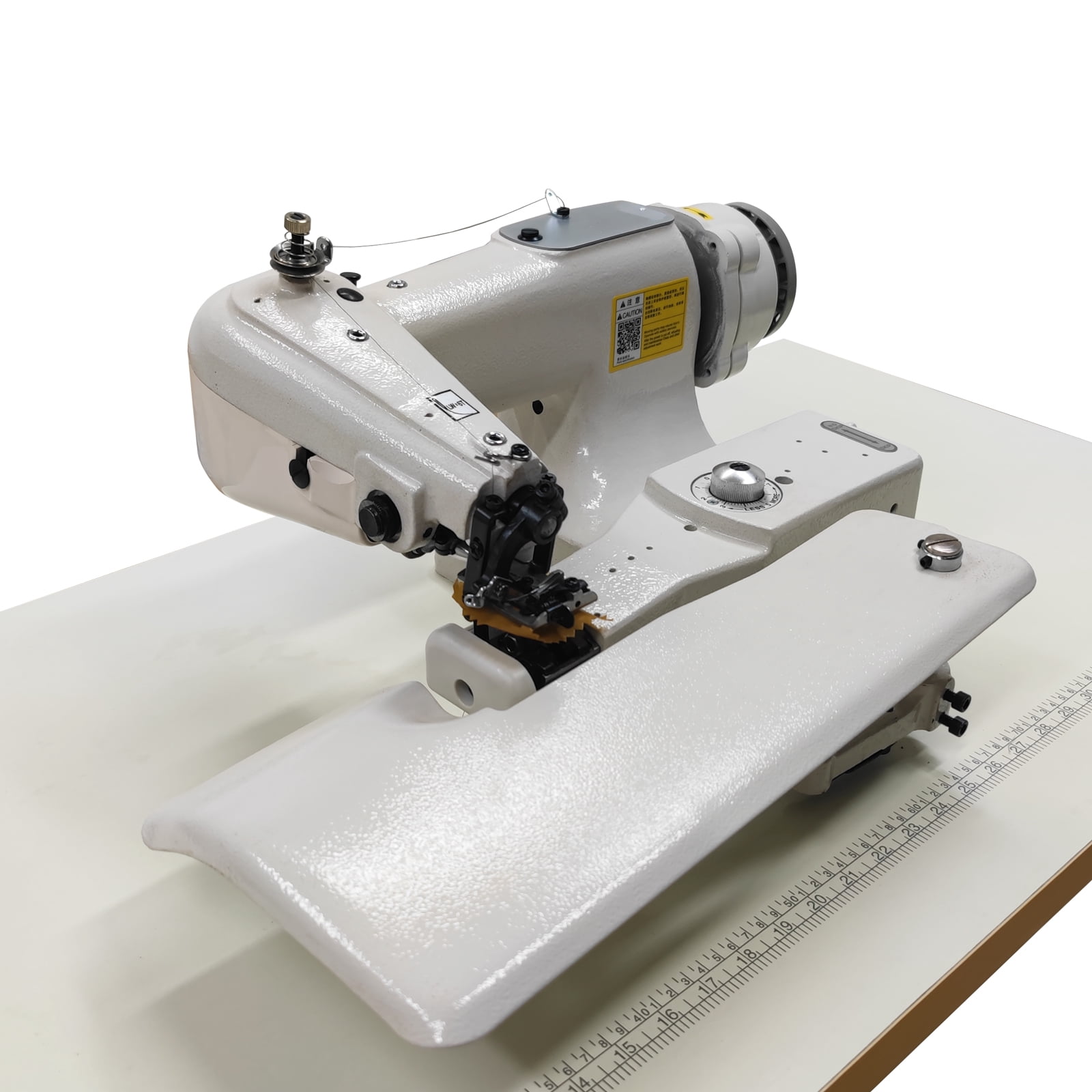

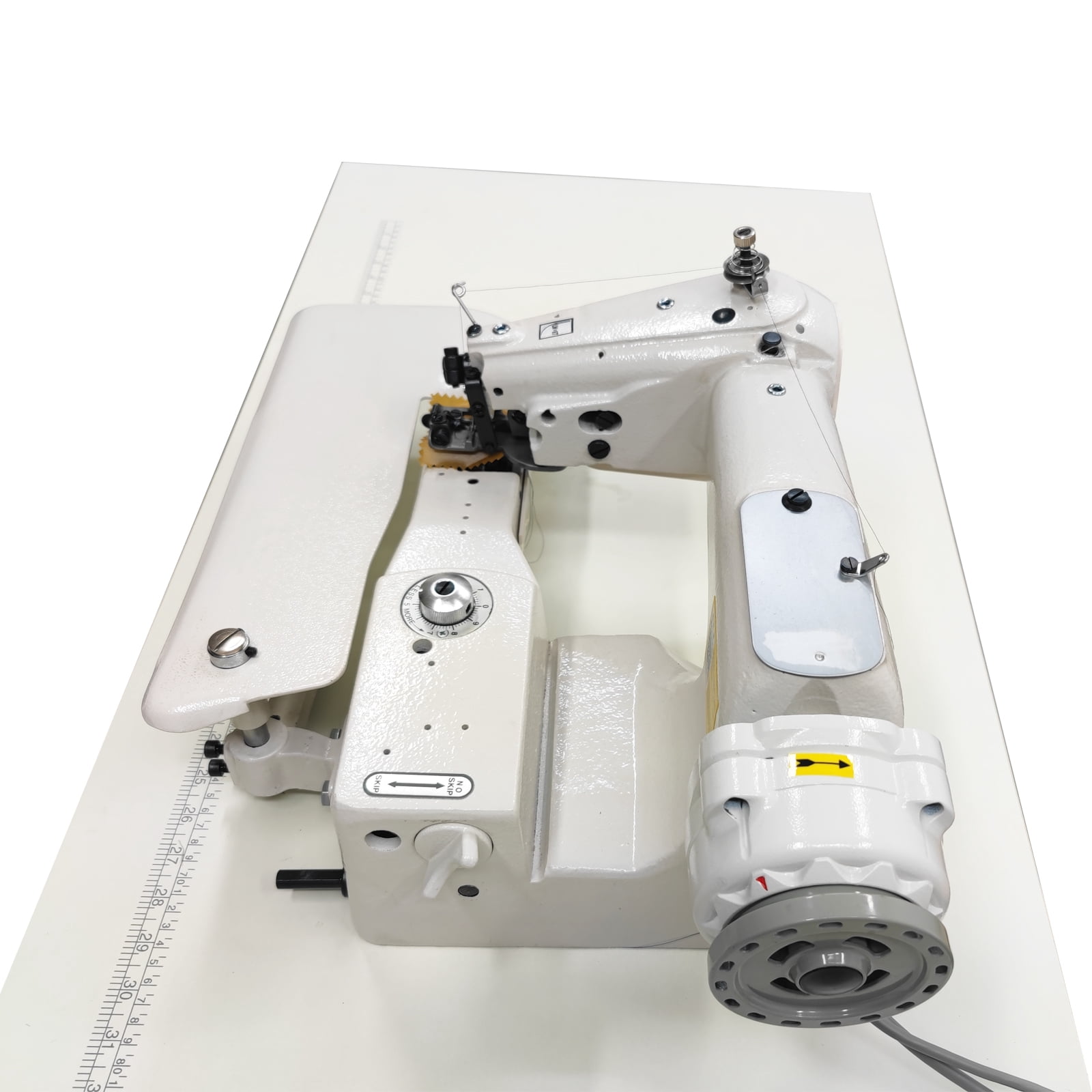

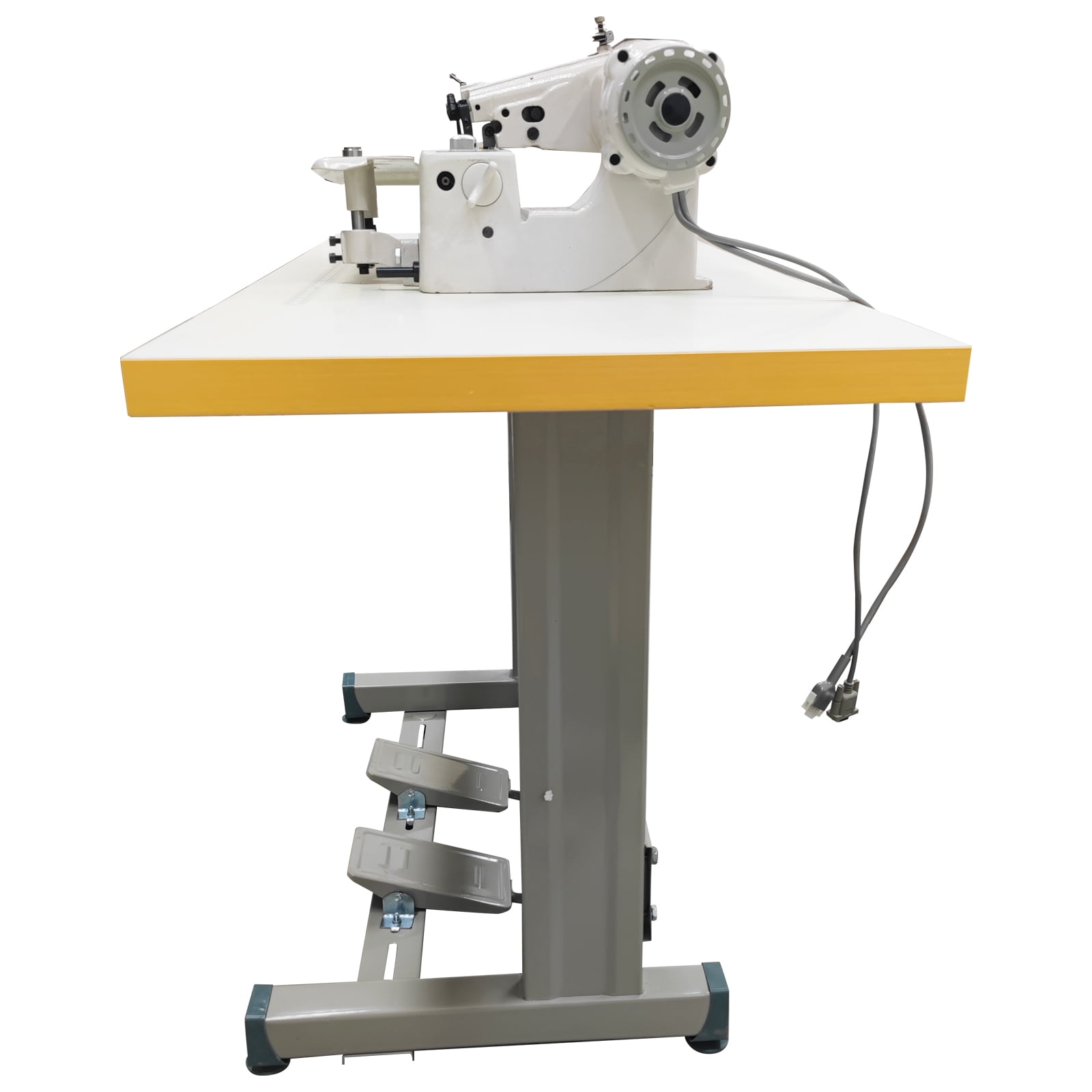

Industrial Blind Stitch Sewing Machine Portable Blind Stitch Hem Chain Stitch Machine with Sewing Table

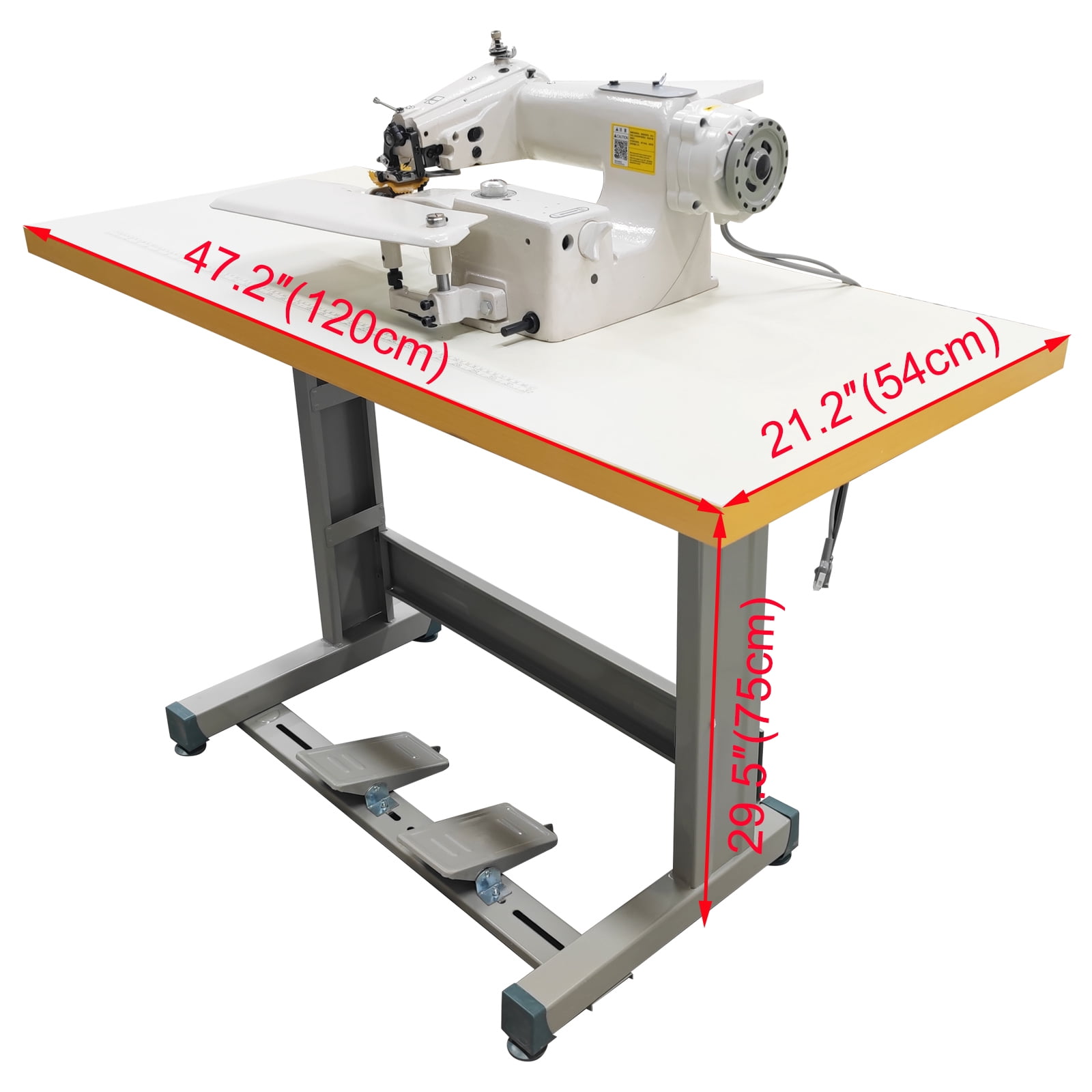

Product Overview: <br>The industrial blind stitch sewing machine is a professional stitching device specifically designed for sewing blind stitches for cuffs, trouser legs, necklines, hems and other parts of knitted fabrics, cotton fabrics, woolen fabrics, chemical and blended fabrics, etc. It adopts the special design and stitch structure, achieving high-precision and high-strength blind stitch sewing and meeting the technological requirements of high-end products. The industrial blind stitch sewing machine can be widely applied to garment factories, tailor shops, dry cleaning shop and other places, can effectively improve the product quality and production efficiency, remarkably reduce the labor cost and increase the added value of products. <br> <br>Product Parameters: <br>Sewing mode: Single-thread sewing, chain stitching, blind stitching <br>Maximum sewing speed: 2500 stitches per minute <br>Stitch gap: 3-8mm <br>Skip stitching device: Equipped with a single-stitch skipping device (1:1, 2:1) <br>Machine needle: LW x 6T <br>Motor: AC servo motor <br>Voltage: 110V <br>Size of supporting table: 120x54x75cm (47.2x21.2x29.5 inches) <br>Net weight: 48kg (105.8LBs) <br> <br>Attention: <br>1. Before use, carefully remove the protective oil, dust and dirt on the machine. During cleaning, pay special attention to vulnerable parts such as the looper and feed mechanism to avoid damaging the components. <br>2. For the new machine, it is recommended that the maximum rotation speed should be 1800-2000rpm during initial use. After 2-4 weeks of trial operation, the operator has mastered the machine proficiently, and the rotation speed can be increased to 2500rpm accordingly. <br>3. Do not start the machine when there is no sewing material between the feed dog and the presser feet, unless the knee leaning rod is pressed down. Otherwise, it will cause accelerated wear between the feed dog and the left/right presser feet. <br>4. Do not touch the running parts during operation. Do not put the hands into the machine. <br> <br>Operation Method: <br>1. Unpack the machine, check whether all the parts are intact, and clean the machine thoroughly. <br>2. Place and fix the machine body on the table plate stably, and assemble the machine. <br>3. Connect the machine to the 110V power supply with reliable grounding. <br>4. Rotate the upper wheel in the clockwise direction, enable the machine needle to reach the left end and guide the thread according to the specified path. <br>5. Feed the to-be-sewn material and prepare for sewing. <br>6. At the beginning, tread on the foot switch to slowly start the machine, and observe the condition that the to-be-sewn material passes through the fabric guide plate. After ensuring the condition is normal, operate the machine to conduct normal sewing. <br>7. After completing the sewing operation, stop the machine, rotate the upper wheel in the clockwise direction, cut off the sewing thread and take out the sewn material. <br> <br>Item included(033389): <br>Portable Blind Stitch Hem Chain Stitch Sewing Machine 110V

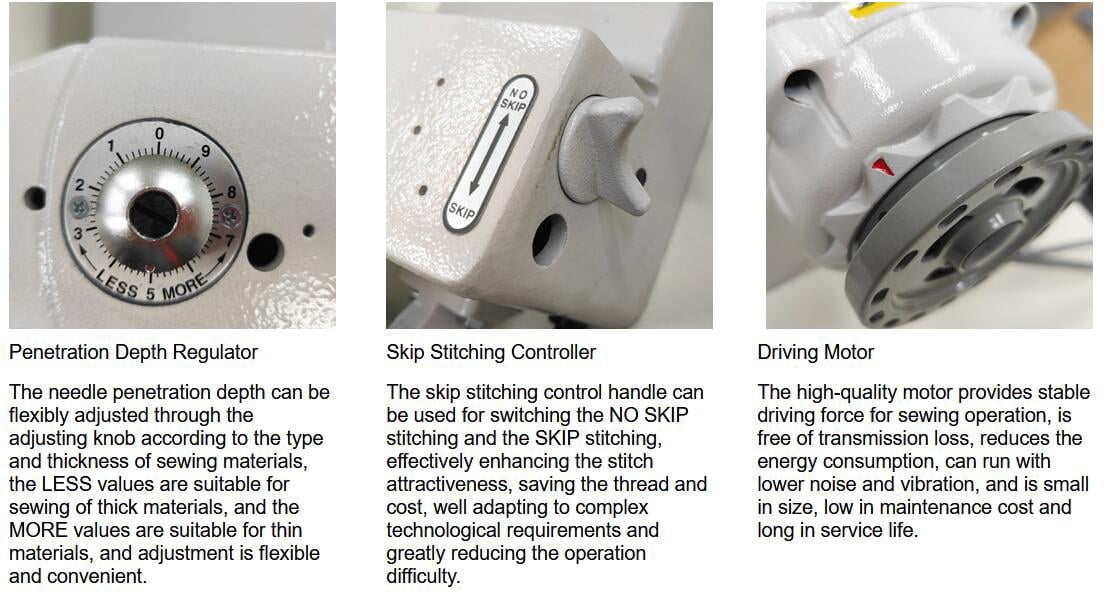

• ‌Industrial Blind Stitch Sewing Machine: Features a penetration depth regulator for flexible adjustment, adapting to thick and thin materials for precise, uniform stitching.
• Skip Stitching Controller: Allows seamless switching between NO SKIP and SKIP stitching, enhancing stitch aesthetics, saving thread, and reducing operational complexity.
• High-Quality Driving Motor: Delivers stable, lossless power with low noise, vibration, and energy consumption, ensuring long service life and minimal maintenance.

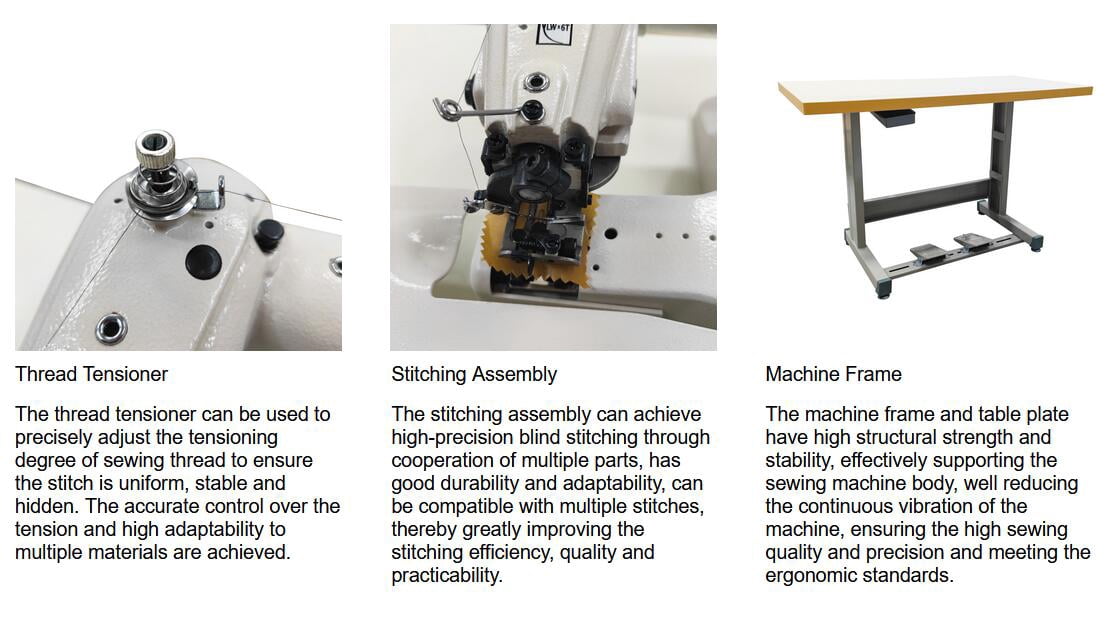

• Precision Thread Tensioner: Enables accurate tension control for uniform, stable, hidden stitches, achieving high adaptability to diverse fabric types.

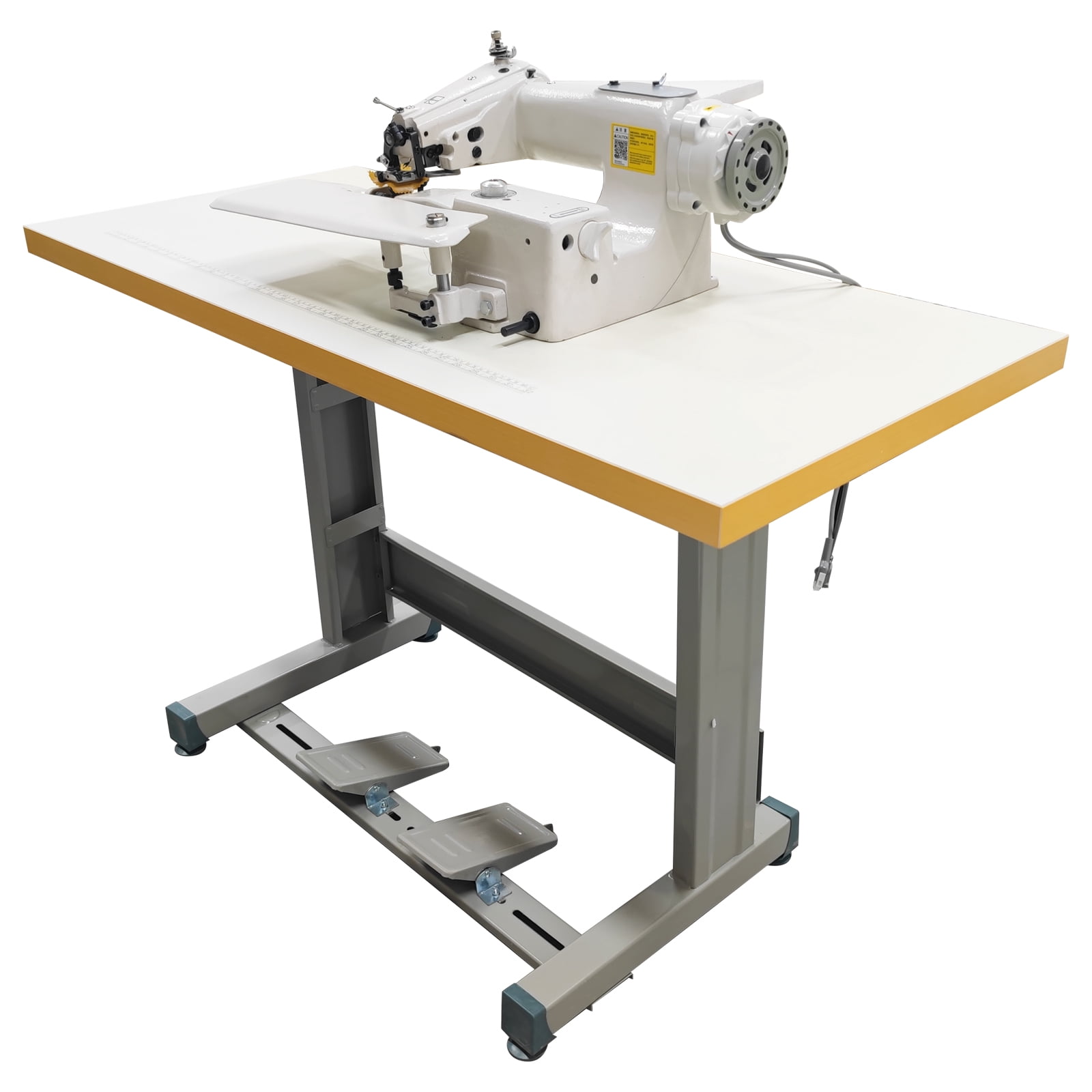

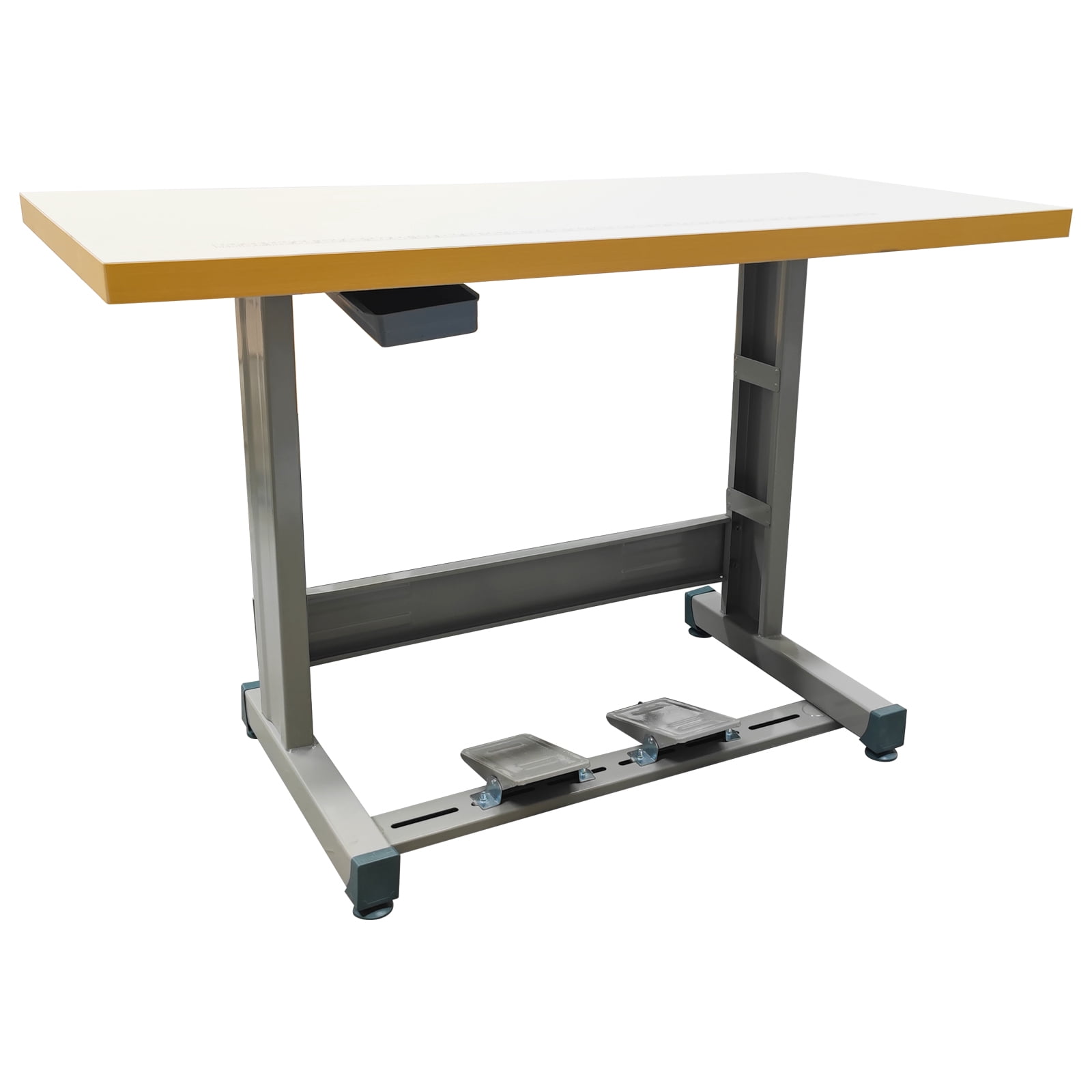

• Sturdy Machine Frame & Table: High-strength frame and table plate provide stable support, reducing vibration to ensure high sewing quality and meet ergonomic standards.
